CGI MD Series RTU

The MD Series is a range of intelligent, flexible RTUs designed for operation in the harsh environments of electricity substations and other industrial or plant conditions. Capable of interfacing with protection relays, metering systems and sensor equipment, the series is equally viable in stand-alone telemetry or sensor-rich IoT deployments.

With an integrated IEC 61131-3 soft PLC (programmable logic controller), support for industry-standard protocols and security aligned to IEC 62443-4-2, the MD Series can operate as an IED/PLC, an edge compute platform or a powerful, secure IoT device.

Our highly configurable range includes the modular, small footprint MD100m unit and extends to the rack mountable MD303cpu and MD300io-r units that are more suited to powerful control logic and intelligent processing.

Software and environment extensions

MDplc automation for CGI RTUs

The MDplc IEC 61131-3 editor is an intuitive and powerful development environment allowing you to develop your applications easily and efficiently. MDplc brings the power of IEC 61131-3 programming languages to CGI RTUs. It provides engineers with intuitive tools for programming, simulation and integration. This simplifies engineering processes, accelerates deployments and helps future-proof automation.

MDplc automation platform for CGI RTUs

Web-HMI

Our secure, browser-based UI provides a contemporary, intuitive and highly configurable option for the dynamic, graphic visualization of monitored asset status as well as events and alarms.

CGI's Web-HMI is fully integrated into the SMS/RTU database, which provides a significant advantage by eliminating the requirement for a separate HMI system to license, maintain or configure.

Web-HMI

IEC61850 Substation Automation

CGI’s IEC61850 software provides a vendor agnostic solution for power utilities seeking to integrate Intelligent Electronic Devices (IEDs) and/or protection relays from multiple manufacturers in a hybrid model and enabling flexibility, choice and opportunity for cost savings.

EC61850 Substation Automation

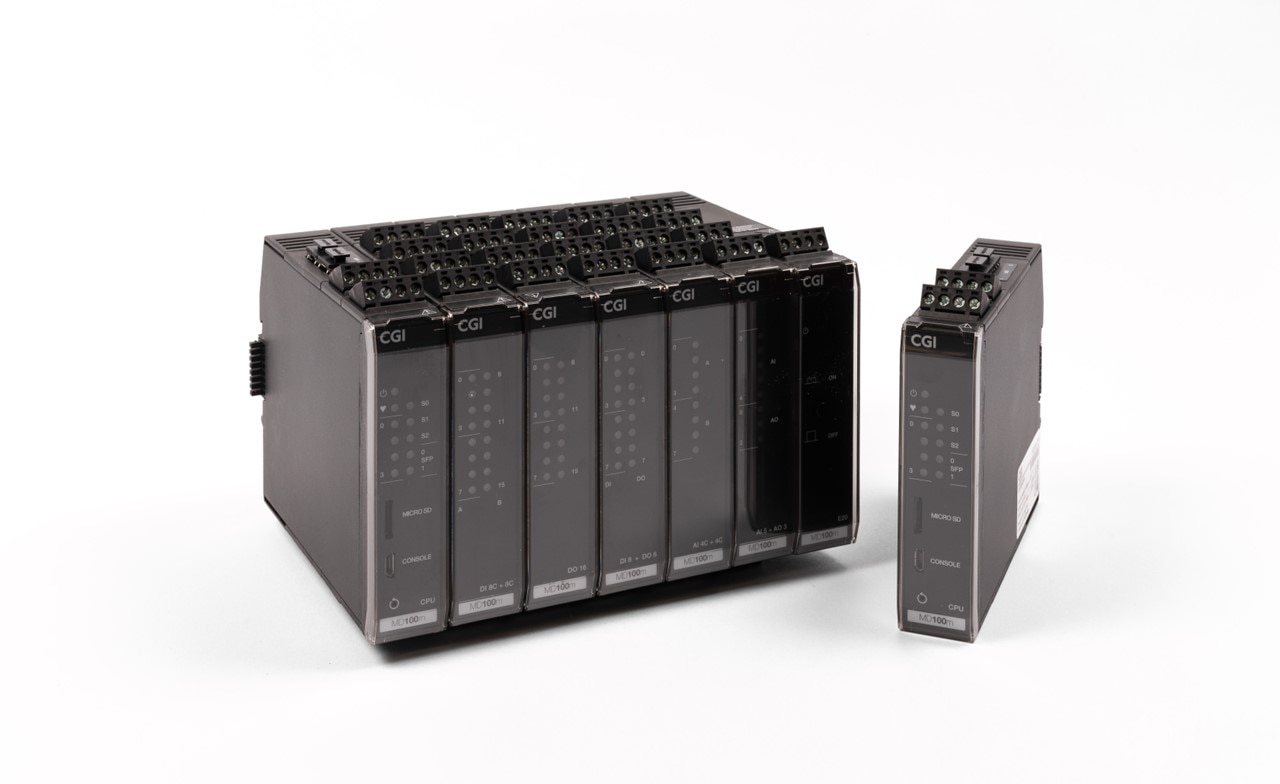

MD100m Modular RTU

MD100m Modular RTU

MD100m Modular RTU

Features:

  • Small form factor RTU - modular and scalable
  • Easy assembly with various configuration options
  • Supports a variety of communications architectures
  • Wide number of use cases including Energy, Water and Wastewater, Smart Cities and more

Download MD100m brochure

Download MD100m for Electricity Utilities brochure

MD303cpu RTU

Features:

  • Robust | High performance
  • IO expansion available with connection to MD300io-r
  • Capable of supporting a wide range of Linux applications
  • Built in Secure Authentication
  • IEC61850 Client/Gateway
  • DNP3, Modbus, SNMP, MQTT + Sparkplug B IIoT protocols
  • Flexible communications options

Download MD303cpu brochure

MD303cpu RTU

MD303cpu RTU

MD300io-r RTU

MD300io-r RTU

MD300io-r RTU

Features:

  • High density IO rack option with up to 16 IO modules per rack
  • Slave device connected to MD303cpu
  • Processing capability can be added through the PM302 processor module option (standalone RTU)
  • Compatible with legacy MD1000 RTU, allowing fast and cost effective replacement installation

Download MD300io-r brochure



Speak to us about your RTU requirements
